Products
Detailed specifications, finishes, and sizing for our core product lines.
HT Panel Components
Complete component solutions for HT switchgear, control panels, and power distribution assemblies. All components tested and certified for reliability.

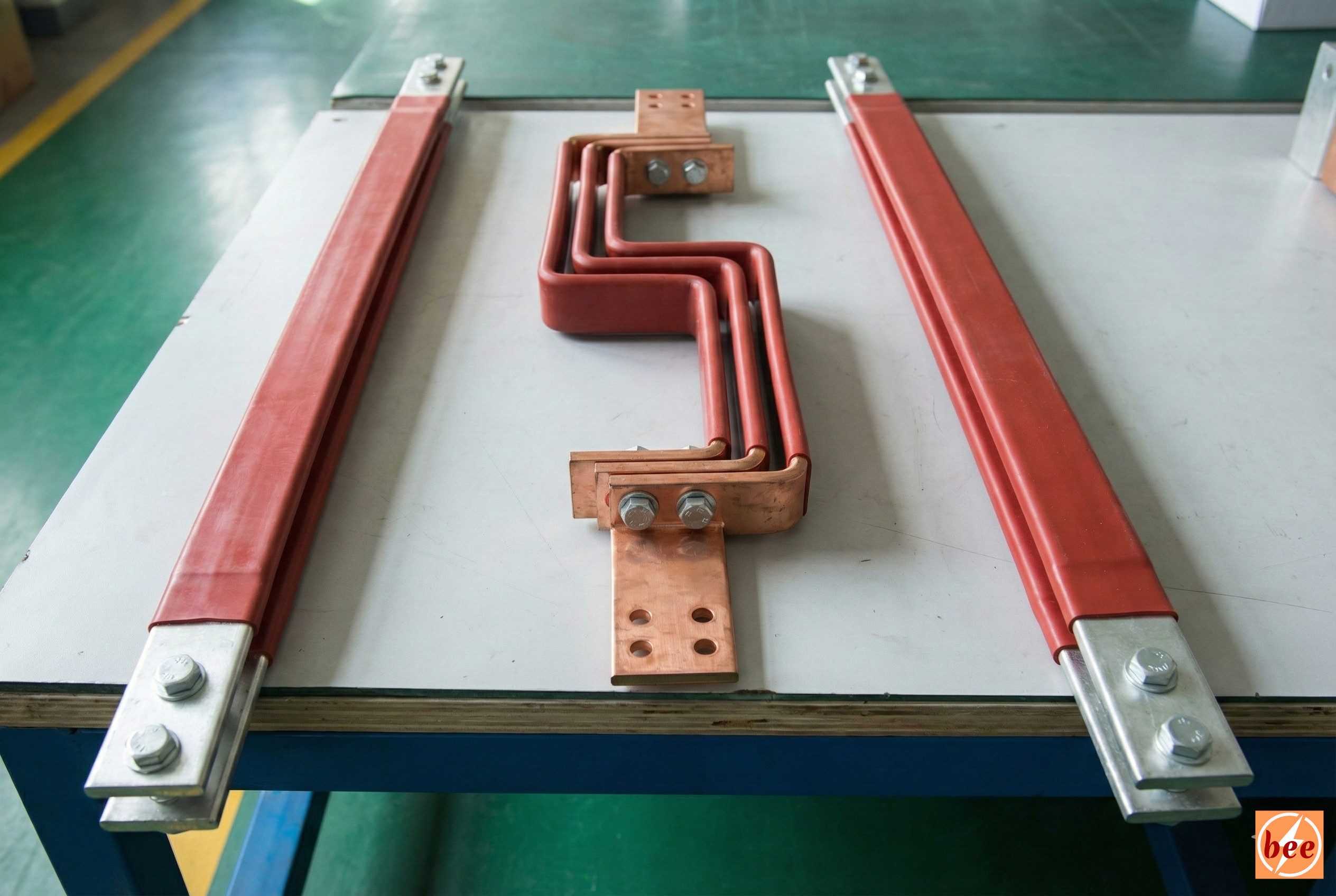

Busbars & Rails
High-capacity current paths designed for minimal voltage drop and heat dissipation.
Custom quotes available
Insulators & Supports
Rigid and flexible mounting solutions maintaining phase isolation and mechanical support.
MOQ: 50 units
Terminal Blocks
Modular connectors for signal and power distribution with quick-disconnect options.
Stock: 500+ units
Protective barriers for live components during operation and maintenance.
Sealed entry points for external wiring with environmental protection.
Fasteners and fixing systems engineered for vibration and thermal cycling.
OEM-compatible replacement contacts and trip mechanism components.
Modular connections for segmented conductor systems and branch feeds.
Interconnection hardware for reactive power compensation assemblies.
Complete Catalog
Browse our comprehensive inventory of electrical components for HT panels, transformers, and switchgear.

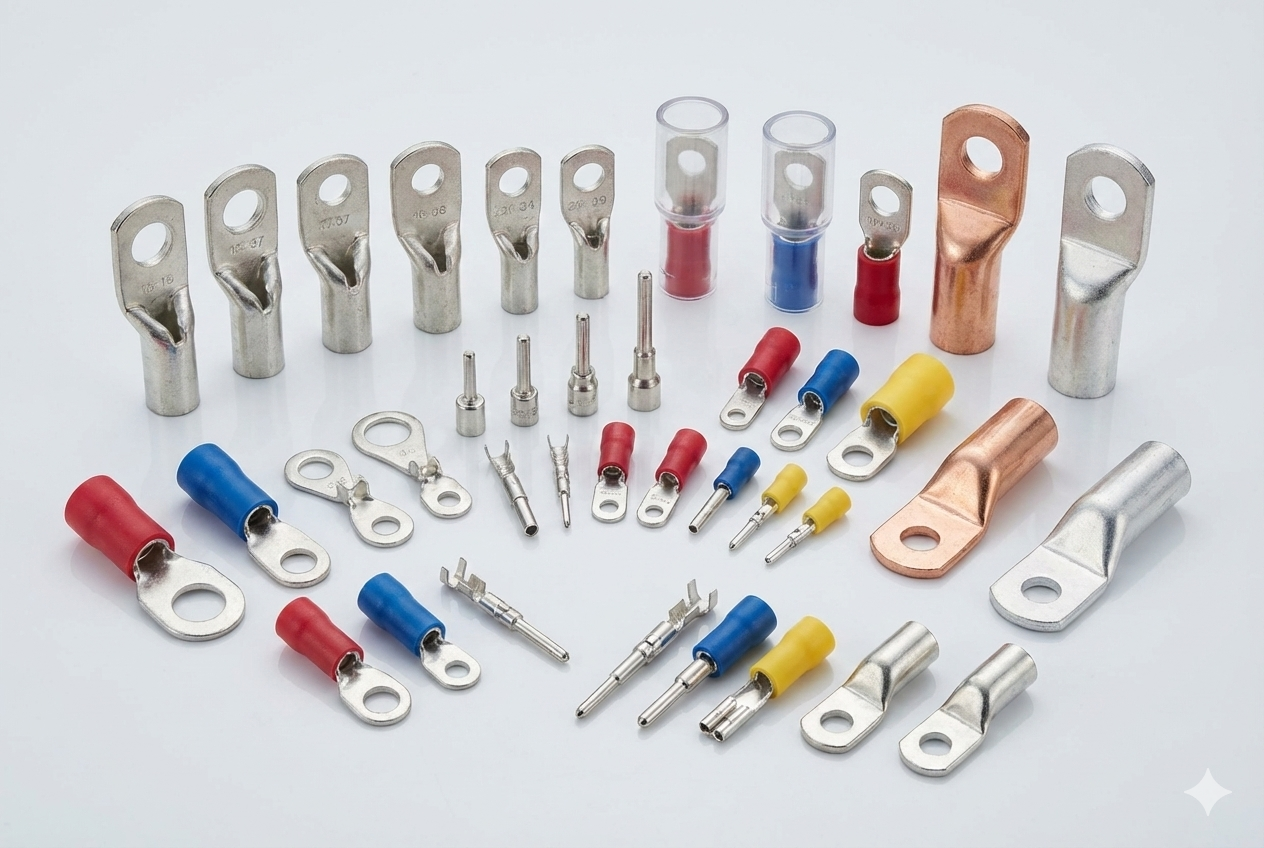

Complete range of aluminum terminal tubes manufactured as per Indian Standard IS-8309 (1993) for cable termination and jointing applications.
✓ Material Standard
IS 8309:1993 compliant aluminum
✓ Applications
Cable termination, jointing & connectors
✓ Finish Options
Bare, tin-plated, or anodized
✓ Custom Orders
Special lengths & crimping available

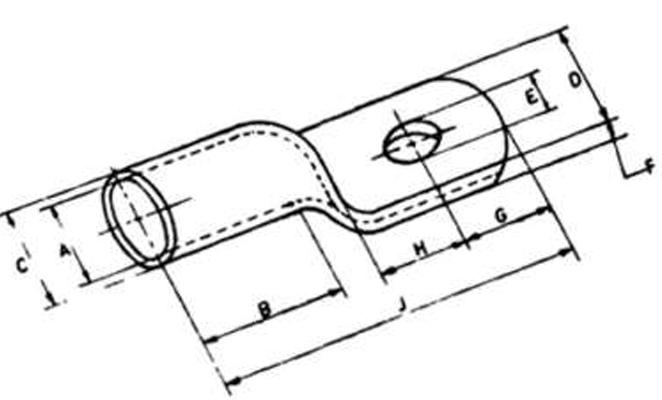

Compression type aluminum tubular lugs for aluminum conductors (CAA series). Standard and maximum stud hole options with body and barrel dimensions for reliable crimped terminations.
| Designation* | ϕE_std† | ϕE_max | ϕA | ϕC | D | F | B‡ | H‡ | G‡ | J‡ |
|---|---|---|---|---|---|---|---|---|---|---|
| CAA-2.5 | 3.2 | - | 1.9-2.1 | 5.4-5.6 | 6.3-6.9 | 3.3-3.7 | 7 | 4 | 4 | 18 |
| CAA-2.5 | 3.2 | 3.7 | 2.5-2.7 | 5.4-5.6 | 6.7-7.3 | 2.7-3.1 | 7 | 4 | 4 | 18 |
| CAA-4 | 3.2 | 4.2 | 2.8-3.0 | 5.4-5.6 | 6.9-7.5 | 2.4-2.8 | 7 | 4 | 4 | 18 |
| CAA-6 | 3.2 | 5.2 | 3.4-3.6 | 5.4-5.6 | 7.2-7.8 | 1.8-2.2 | 7 | 7 | 6 | 24 |
| CAA-10 | 4.2 | 5.2 | 3.7-3.9 | 6.1-6.3 | 8.1-8.7 | 2.2-2.6 | 7 | 9 | 8 | 28 |
| CAA-10 | 4.2 | 6.4 | 4.3-4.5 | 7.1-7.3 | 9.4-10.9 | 2.6-3.0 | 9 | 9 | 8 | 30 |
| CAA-16 | 5.2 | 8.2 | 5.3-5.5 | 8.2-8.4 | 11.1-11.7 | 2.7-3.1 | 13 | 11 | 9 | 37 |
| CAA-25 | 6.4 | 10.2 | 6.8-7.1 | 9.6-9.8 | 13.4-14.0 | 2.5-2.9 | 16 | 11 | 10 | 44 |
| CAA-35 | 6.4 | 10.2 | 7.8-8.1 | 10.7-10.9 | 15.1-15.7 | 2.6-3.0 | 18 | 11 | 11 | 47 |
| CAA-50 | 6.4 | 10.2 | 9.1-9.4 | 12.9-13.11 | 8.0-18.6 | 3.4-4.0 | 22 | 13 | 11 | 54 |
| CAA-70 | 8.2 | 12.7 | 11.1-11.4 | 15.4-15.6 | 21.7-22.3 | 3.9-4.5 | 26 | 13 | 13 | 60 |
| CAA-95 | 10.2 | 12.7 | 13.0-13.3 | 17.3-17.5 | 24.6-25.2 | 3.9-4.5 | 28 | 14 | 14 | 64 |
| CAA-120 | 10.2 | 16.2 | 14.5-14.9 | 19.5-19.7 | 27.7-38.3 | 4.5-5.1 | 32 | 15 | 15 | 73 |
| CAA-150 | 10.2 | 16.2 | 16.2-16.6 | 21.4-21.6 | 30.6-31.2 | 4.7-5.3 | 34 | 17 | 17 | 79 |
| CAA-185 | 10.2 | 16.3 | 18.2-18.6 | 23.9-24.1 | 34.2-35.0 | 5.0-6.0 | 36 | 18 | 18 | 84 |
| CAA-240 | 12.7 | 20.3 | 20.7-21.3 | 27.9-28.2 | 39.6-40.6 | 6.3-7.3 | 44 | 22 | 22 | 102 |
| CAA-300 | 16.2 | 20.3 | 23.5-24.1 | 30.9-31.2 | 44.2-45.2 | 6.5-7.5 | 47 | 27 | 27 | 115 |
| CAA-400 | 16.2 | 20.3 | 26.5-27.1 | 35.4-35.7 | 50.5-51.5 | 7.8-9.2 | 56 | 31 | 30 | 130 |
| CAA-500 | 20.3 | - | 29.5-30.2 | 40.9-41.2 | 57.4-58.8 | 10.1-11.9 | 60 | 33 | 32 | 140 |
| CAA-630 | 20.3 | - | 34.5-35.2 | 45.9-46.2 | 65.4-66.0 | 10.1-11.9 | 59 | 35 | 34 | 154 |
| CAA-800§ | - | - | 38.5-39.2 | 50.9-51.2 | 72.5-74.1 | 11.1-12.9 | 77 | 39 | 39 | 180 |
| CAA-1 000§ | - | - | 43.0-43.7 | 56.8-57.2 | 80.9-82.9 | 12.5-14.5 | 100 | 45 | 45 | 220 |
* First letter 'C' stands for jointing method, that is, compression; Second letter 'A' for terminal and material, Aluminium; Third letter 'A' for applicable conductor material, that is, Aluminium, 'a' for single strand conductor and 'A' for multistrand conductor, where depending upon conductor construction, for a particular conductor size two terminal ends are specified, and numerals separated by a hyphen from the third letter stands for nominal conductor size in mm².
† If the purchaser desires to have a larger stud hole than the standard hole specified in col 2, stud hole size shall be chosen from 3.7, 4.2, 6.4, 8.2, 10.2, 12.7, 16.2 and 20.3 mm subject to maximum as given in col 3.
‡ Tolerances on B, H, G and J are ± 5 percent.
§ These terminal ends are without stud holes (blank).
Brass double compression cable glands manufactured to BS 6121-1:2005 with IS 12943:1990 testing reference. Designed for secure armour clamping and reliable environmental sealing.
| Cable Gland Type | Metric Thread (D) | A Min (mm) | A Max (mm) | Cone ID | B Min (mm) | B Max (mm) | Entry Nut ID | ISO Thread Dia (D) | ISO Thread L (E) | Protrusion (F) | Hex AF (G) | Hex AC (H) | Armour Min | Armour Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEE CW 16 | M16 | 3.00 | 10.00 | 6.5 | 11.50 | 16 | 15.00 | 40 | 22.0 | 24.0 | 0.8 | 1.25 | ||
| BEE CW 19 | M20 | 6.0 | 12.00 | 10.5 | 15.00 | 20 | 15.00 | 45 | 22.0 | 24.0 | 0.8 | 1.25 | ||
| BEE CW 22 | M20 | 10.20 | 14.50 | 14.8 | 19.00 | 20 | 15.00 | 45 | 27.0 | 30.0 | 0.8 | 1.25 | ||
| BEE CW 25 | M25 | 12.50 | 20.70 | 18.00 | 21.00 | 25 | 15.00 | 50 | 31.0 | 35.0 | 1.25 | 1.6 | ||
| BEE CW 28 | M25 | 14.00 | 20.70 | 19.5 | 25.50 | 25 | 15.00 | 50 | 35.0 | 39.0 | 1.25 | 1.6 | ||
| BEE CW 32 | M32 | 16.80 | 27.00 | 23.00 | 31.30 | 32 | 15.00 | 55 | 44.0 | 48.0 | 1.6 | 2.0 | ||
| BEE CW 35 | M40 | 24.80 | 32.00 | 31.00 | 38.00 | 40 | 15.00 | 60 | 51.5 | 57.5 | 1.6 | 2.0 | ||
| BEE CW 38 | M40 | 28.00 | 34.00 | 33.5 | 40.00 | 40 | 15.00 | 60 | 51.5 | 57.5 | 1.6 | 2.0 | ||
| BEE CW 45 | M50 | 32.00 | 44.80 | 39.00 | 45.00 | 50 | 15.00 | 65 | 64.5 | 72.0 | 2.0 | 2.5 | ||
| BEE CW 50 | M50 | 37.00 | 44.80 | 44.00 | 49.30 | 50 | 15.00 | 65 | 64.5 | 72.0 | 2.0 | 2.5 | ||
| BEE CW 57 | M63 | 41.00 | 53.50 | 48.5 | 58.00 | 63 | 18.00 | 70 | 70.0 | 77.0 | 2.0 | 2.5 | ||
| BEE CW 63 | M63 | 50.00 | 58.00 | 57.00 | 65.00 | 63 | 18.00 | 70 | 78.0 | 87.5 | 2.0 | 2.5 | ||
| BEE CW 70 | M75 | 55.00 | 62.00 | 62.00 | 67.00 | 75 | 20.00 | 76 | 84.0 | 92.5 | 2.0 | 2.5 | ||
| BEE CW 75 | M75 | 59.00 | 68.50 | 66.4 | 78.5 | 75 | 20.00 | 79 | 95.0 | 108.0 | 2.5 | 3.0 | ||
| BEE CW 82 | M90 | 66.50 | 73.50 | 72.00 | 88.00 | 90 | 20.00 | 96 | 105.0 | 122.0 | 3.15 | 4.0 |
Joint connectors for copper and aluminum conductors.
High-conductivity copper strips for busbar and grounding applications.
Lightweight conductor strips for high-current applications.
Grounding and bonding connectors for safety systems.
Complete kits for HT cable termination and jointing.
All types of brass fasteners for electrical assemblies.
Grounding rods and plates for earth pit installations.
Holders and assemblies for motor and generator brushes.
Fixed contact assemblies for on-load tap changers.
Moving contact assemblies rated for 300 amperes.
Resistor contact assemblies for transition switching at 300A.
Mounting studs, washers, and fixing kits for transformers.
Flexible copper/aluminum busbars for 11kV applications.
Rigid busbars designed for 11kV switchgear and panels.
Auxiliary components for HT/LT switchgear assemblies.
Fixed contact sets for circuit breakers and contactors.
High-tension circuit breaker contact assemblies and tips.
Material Finishes
Choose the right finish for your environment and operational requirements.
Maximum conductivity, excellent solderability. Use in sealed indoor environments.
Oxidation resistance, improved solderability, suitable for most panel applications.
Superior corrosion protection for coastal and industrial environments.
Structural parts protection, available in any RAL color for visual distinction.
Quick Reference
Download our comprehensive component sizing and selection guides.
📋 Busbar Dimensions
Cross-section ratings, thermal capacity, and current ratings for HT applications.
📋 Component Selection
Quick-select guide for choosing the right components based on cable size and environment.
